See the Difference

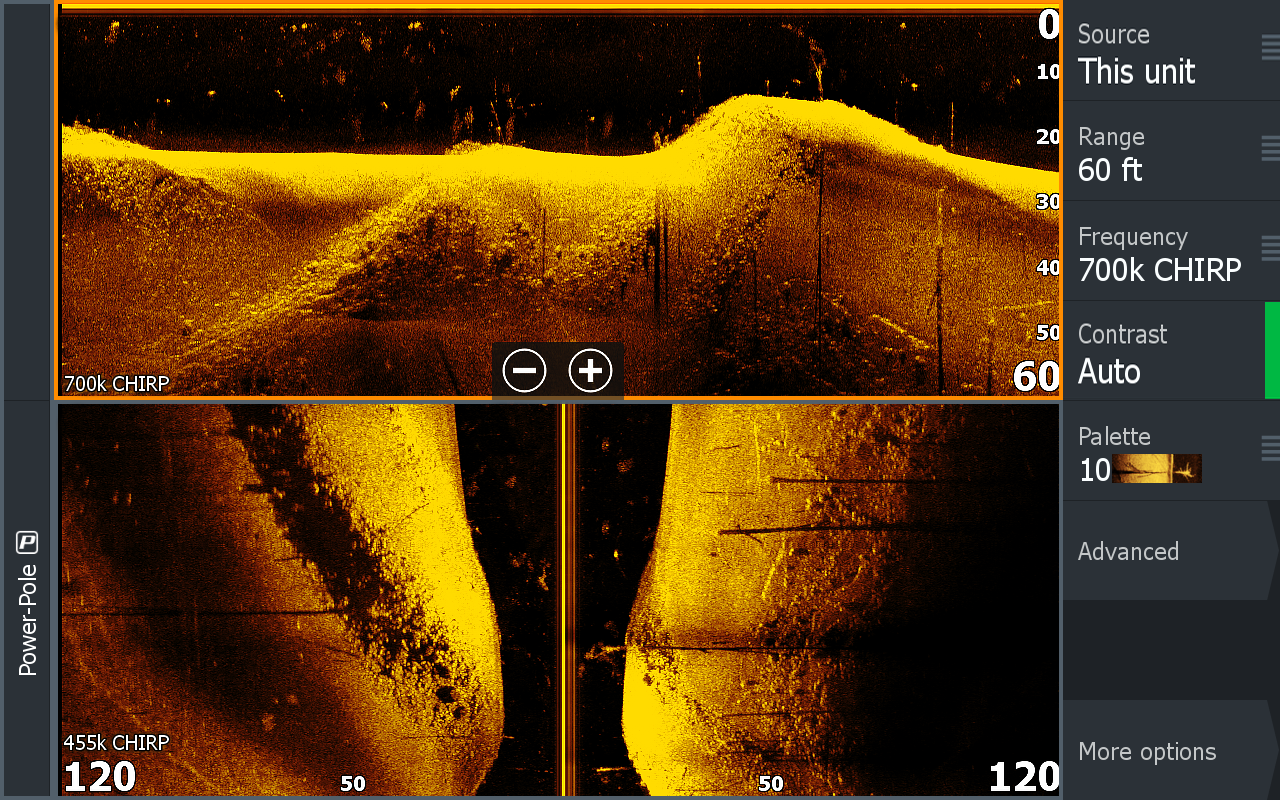

Our clearest sonar ever, Active Imaging™ HD delivers the highest-definition views of Lowrance® CHIRP, SideScan and DownScan Imaging™. Experience a new level of clarity and improved target separation with extremely detailed views of fish and fish-holding structure like rockpiles, standing timber, weedbeds, ditches, drop-offs and more.

Complete FishReveal Views

Get the best of CHIRP sonar and Imaging sonar on one display with FishReveal™. First introduced with DownScan Imaging™, FishReveal is now available on SideScan*, making it quicker and easier to recognize fish targets – along with picture-like images of structure on both sides of your boat.

*The FishReveal SideScan view requires an optional S3100 sonar module.

Designed for Clarity

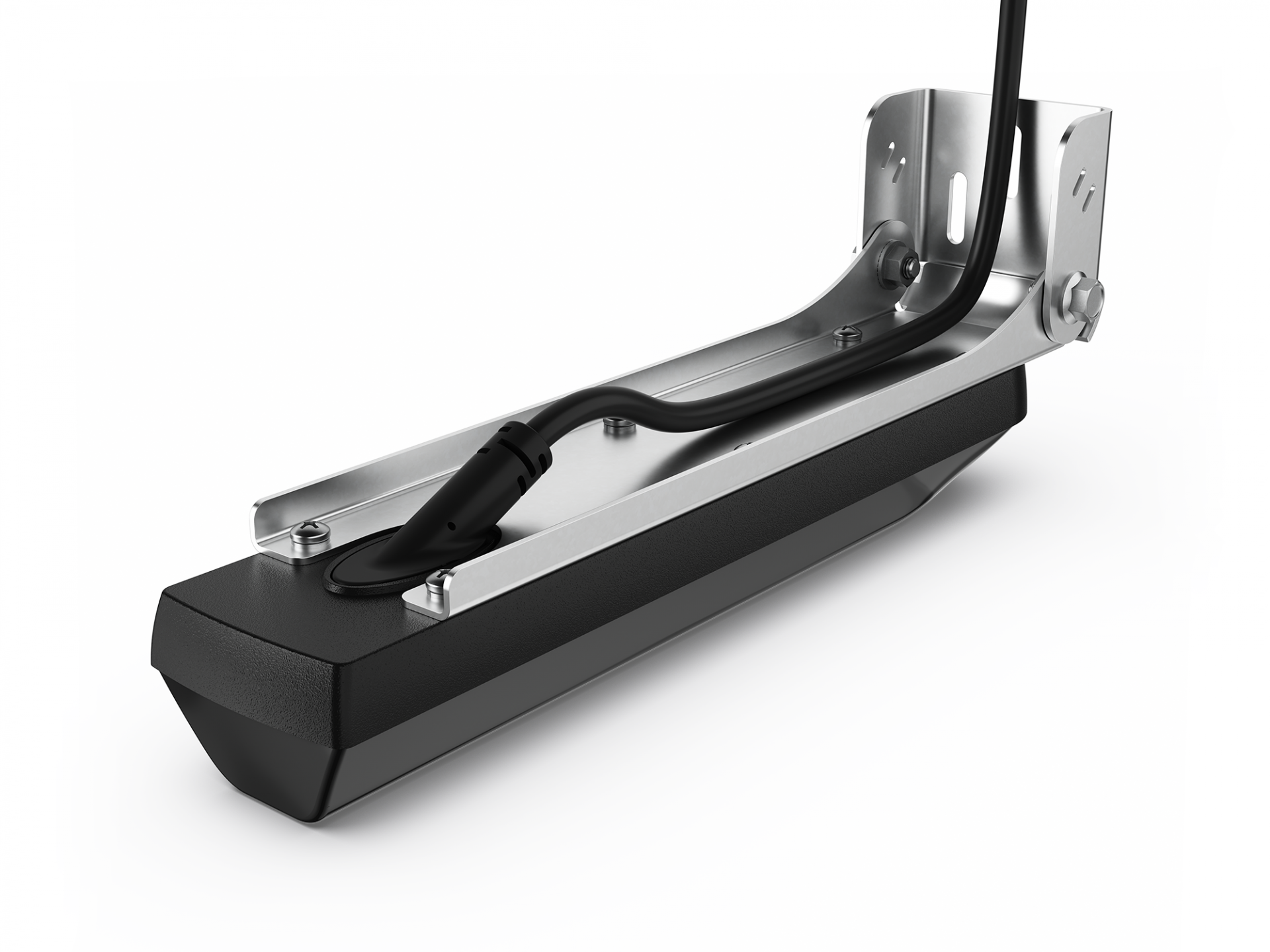

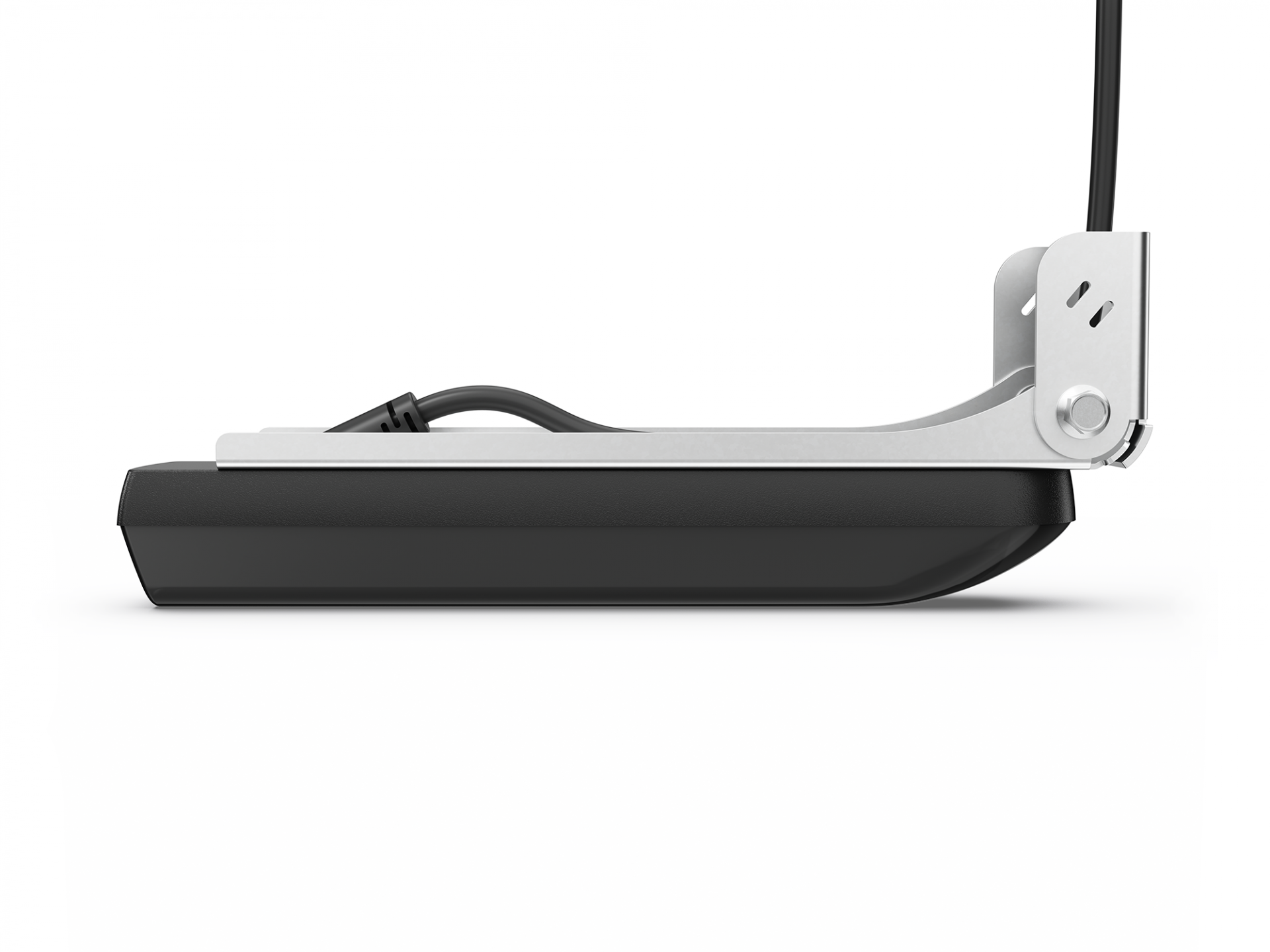

The Active Imaging™ HD transducer not only delivers three key sonar technologies – Lowrance® CHIRP, SideScan and DownScan Imaging™ – in one convenient package, but also features a new transducer design that boosts signal clarity.

*requires S3100 sonar module and relevant transducer for Fish Reveal SideScan on HDS Pro



Details:

• High definition (up to 1.2MHz) SideScan and DownScan Imaging deliver the clearest images of fish and structure
• Lowrance CHIRP with superb clarity and target separation
• FishReveal™ with new SideScan* view as well DownScan
• Supports Medium and High CHIRP (83/200kHz) + 455/800kHz and 455/1.2MHz frequencies
• Smart transducer design boosts signal clarity
• Compatible with Lowrance HDS PRO or with a S3100 module with HDS LIVE, HDS Carbon, Elite FS and Simrad NSSevo3S, NSS evo3 and GO series displays (only on mrad site)

*requires S3100 sonar module and relevant transducer for Fish Reveal SideScan on HDS PRO
