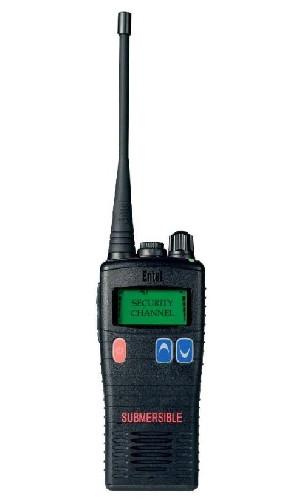

HT723
VHF IP68 programável 136 a 174 MHz (Número de homologação: 52.0122).
Inclui: bateria recarregável 2000mAh, antena, carregador AC, base de carregamento e fivela para cinto.

Especificações Técnicas

Gerais:

Frequency Range: 136 - 174MHz
Channels: Non LCD 16 Channels, LCD 255 channels
Channel Spacing: 12.5 kHz / 25 kHz
Communication Method: Simplex / semi duplex
Antenna Impedance: 50 ohm
Antenna: Whip / stubby
Battery Type: 2200 mAh Lithium-ion battery pack
Operating Voltage: 7.6V
Current Drain (nominal): 40mA
Duty Cycle (5/5/90): 12.5 hours
Microphone: Internal condenser microphone
Construction: MIL-STD 810C/D/E/F
IP Rating: IP68 (2 meters depth for 4 hours)
Operating Temperature: -20° to +55°C
Size (mm): 59.5(W) x 130(H) x 37(D)
Weight: 277g with battery and aerial

Transmissor:

Power Output: High – 5W VHF, 4W UHF, & Low - 1W
Modulation: 8K0G3E/16K0G3E
Oscillator Method: PLL
Frequency Stability: 2.5PPM
Maximum Deviation: ±2.5 kHz(Narrow)/ ±5 kHz(Wide)
Audio Distortion: < 5% (1 kHz 60%)
Spurious Emission: -68 [dBc]
Hum & Noise: -40 [dB]

Recetor:

Receiver Type: Double Super Heterodyne type
Sensitivity: -0.25uV (12dB SINAD)
Frequency Stability: 2.5PPM
Spurious Rejection: -60 dB
Adjacent Channel Selectivity: -60 dB (Narrow) , -70 dB (Wide)
Distortion: < 5% (1 kHz 60%)
Hum & Noise: -40 dB
Audio Output: 1W
